Museum-Grade Dinosaur Skeleton Replica

A skeleton reads differently from a mounted animal, and the difference is the gaps. There is no skin to hide the joints, no pose to disguise the proportions, and nowhere for a bad casting to disappear. A visitor walking round a skeleton is reading the structure itself, which is why museums are far less forgiving of a replica than a theme park is of a statue.

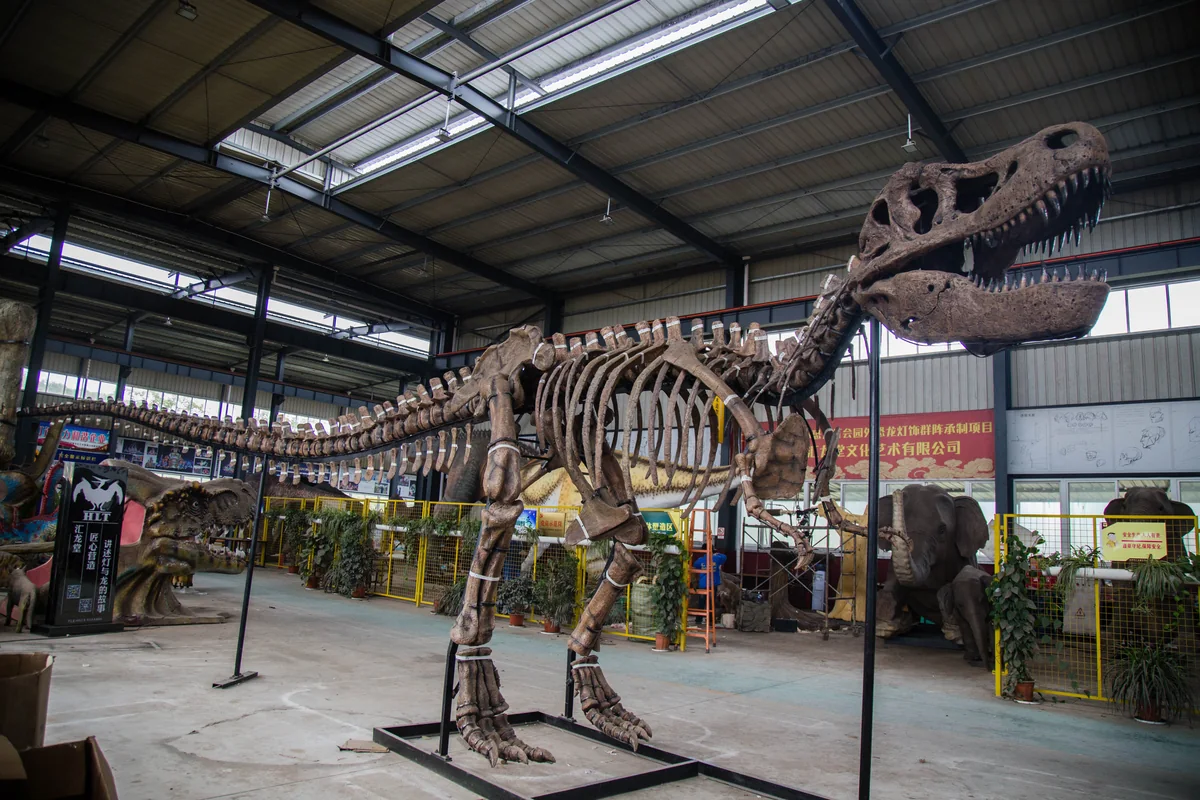

This piece is built the way a museum mount is built: a steel armature carrying the load, FRP bone elements formed over it, and a hand-finished fossil surface. It is a static replica — there is no mechanism, and nothing to service beyond the finish.

Specifications

Why the armature decides whether it looks right

FRP bones are light, which is an advantage in shipping and a problem in mounting: a light bone on a visible support looks suspended, and a suspended skeleton looks like a model rather than a mount. The fix is to design the armature first and the bones around it, so the supports sit where the anatomy would carry load anyway.

On a theropod that usually means the spine runs on a continuous steel line from skull to tail base, with the ribs cantilevered off it and the legs carrying down to the anchor points. Where a museum mount hides the armature inside the bone profile, the result reads as a skeleton standing up rather than a skeleton hung on a frame.

Mounting style changes the engineering, not just the look

Three arrangements are common, and they are genuinely different builds. Freestanding on a plinth is the simplest: the armature carries everything to a base plate and the plinth takes the load. Partially buried puts the anchor points below grade, which reads better in a landscape and needs drainage designed into the excavation.

Landscape-integrated is the one that gets underestimated. Where the skeleton emerges from planting or a rock feature, the armature has to be built to be loaded asymmetrically — some of the visual support comes from the landscape, and none of the structural support does. That means a heavier armature than a freestanding mount of the same size.

The patina is a maintenance item, not a finish

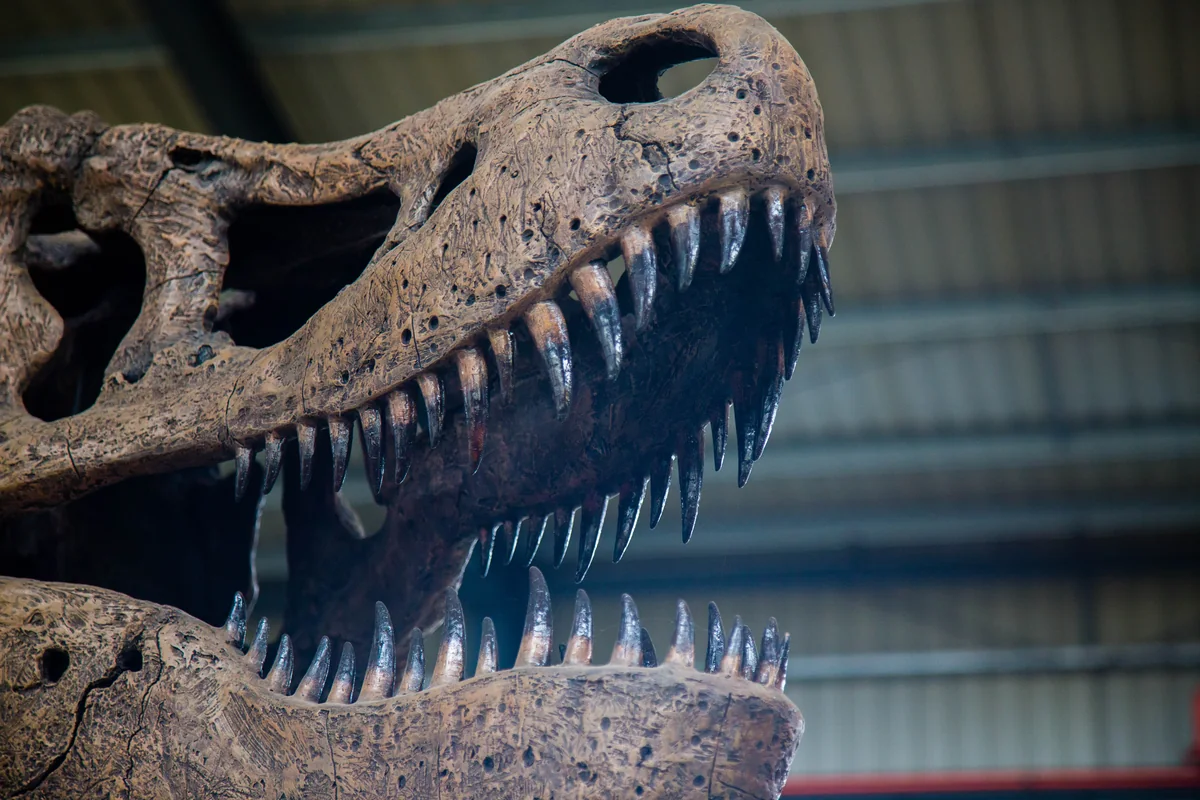

Fossil colour is not a single pigment. It is layered — a base tone, a darker wash in the recesses, a lighter dry-brush on the high points, and a sealing coat that holds the whole thing. Done properly it reads as mineral rather than as paint.

It also fades unevenly outdoors: the high points go first because they take the sun and the rain. That is why touch-up pigment ships with the piece rather than being a later order. An hour of local touch-up every second season keeps a mount looking excavated; ignoring it for five years means a full repaint.

Indoor and outdoor are different specifications

Indoors, the constraint is fire performance and weight on the floor. Outdoors, it is UV, frost and water sitting in the recesses. The FRP and armature are the same; the sealing system and the anchor design are not.

Where a piece is going to move between the two — a travelling exhibition, for instance — it is built to the outdoor specification and mounted indoors on a lighter base. That is more expensive than an indoor build and avoids rebuilding the seal every time it moves.

Questions Before Ordering

Is this an exact cast of a real specimen?

No. It is a sculpted replica built to the species’ published proportions, not a cast of a specific specimen. Where a museum needs a named individual, that requires specimen data we would need supplied — and the build becomes a different project.

Can it be assembled by our own team?

The mount ships in sections with a numbered assembly drawing, and a team of three to five can assemble it. The part that usually needs support is the final positioning and the anchoring, because the load path has to be verified once the piece is standing. We can send a technician for that stage.

How much does it weigh, and does the floor need reinforcing?

Weight scales with species and size, and the point loads are concentrated at the anchor points rather than spread across the base. On a suspended floor or a mezzanine, the anchor loads have to be checked against the slab — send us the floor detail and we will size the base plate to it.

What happens to FRP outdoors over ten years?

The FRP itself is stable; the surface is what ages. Sealed and touched up on a two-season cycle, an outdoor mount holds its reading for well over a decade. Left unsealed, the patina chalks and the piece starts to look like painted plastic.
