Animatronic Dinosaurs
A Carnotaurus carries two curved horns over a short, deep skull, and the animal is built around that head — the body is comparatively light and the arms are small. It is one of the more recognisable theropods and one of the harder ones to get right, because the proportions have to be committed to rather than nudged.
| Product type | Large electric animatronic dinosaur model |
|---|---|
| Overall size | Length 1–30 m, height 1–15 m — full custom sizing |
| Power | 110 V / 220 V, specified per site |
| Power draw | 150 W to 8000 W, depending on size and movement count |
| Control | Industrial single-chip controller |
| Materials | National-standard steel · first-tier servo motors · high-density foam · composite silicone · elastic fibre mesh reinforcement |
| Movements | Jaw open and roar · eye blink with LED eyeballs · head nod · forelimb grip · breathing torso · tail sway · walking stance |
| Trigger options | Infrared proximity sensor · radar · pre-programmed sequence · remote control · voice interaction |
| Suits | Scenic parks, theme parks, malls, public squares, amusement parks, exhibition halls |
| Warranty | 12 months on the complete unit |
The model is built to a stated overall size with the horn and skull proportions set against that size, and it is supplied for outdoor park placement, museum display and mall installation, either static or moving.

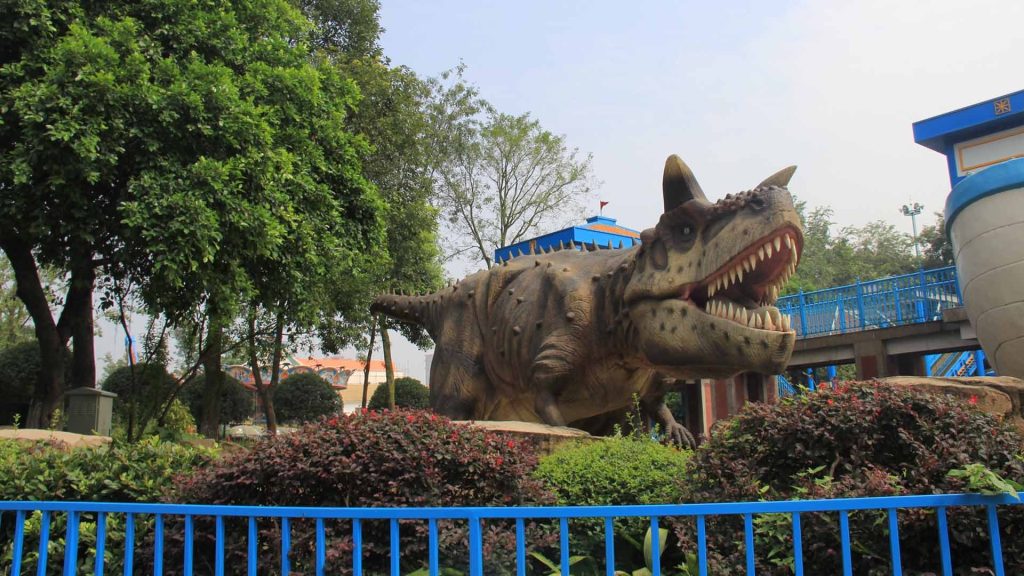

Two curved horns rise above the skull and sweep back, with a row of small osteoderms along the snout and a deep, heavily muscled neck. The jaw is short and powerful with a wide gape, and the teeth are moulded and fitted individually. What sells the animal is the proportion between that head and the body — a Carnotaurus with a T-Rex head is a different animal.
The body is lighter-boned than a large tyrannosaur, with a long tail and a narrow chest. The skin is a mottled pattern over the flanks, and the finish is hand-sprayed in multiple layers so the mottling reads across the whole animal rather than only in close-up.
Hot-dip galvanised steel frame, anti-UV composite silicone skin over elastic fibre mesh, servo drives rated to IP65. A Carnotaurus spends its life outdoors among planting and footpaths, and the paint has to survive that while looking like an animal rather than a coated sculpture.
The unit ships in bolted sections and assembles on site without welding, with a concrete foundation or weighted base depending on the site. Our technician joins the first run so the jaw travel, head movement, breathing and tail are set against the actual ground and light.

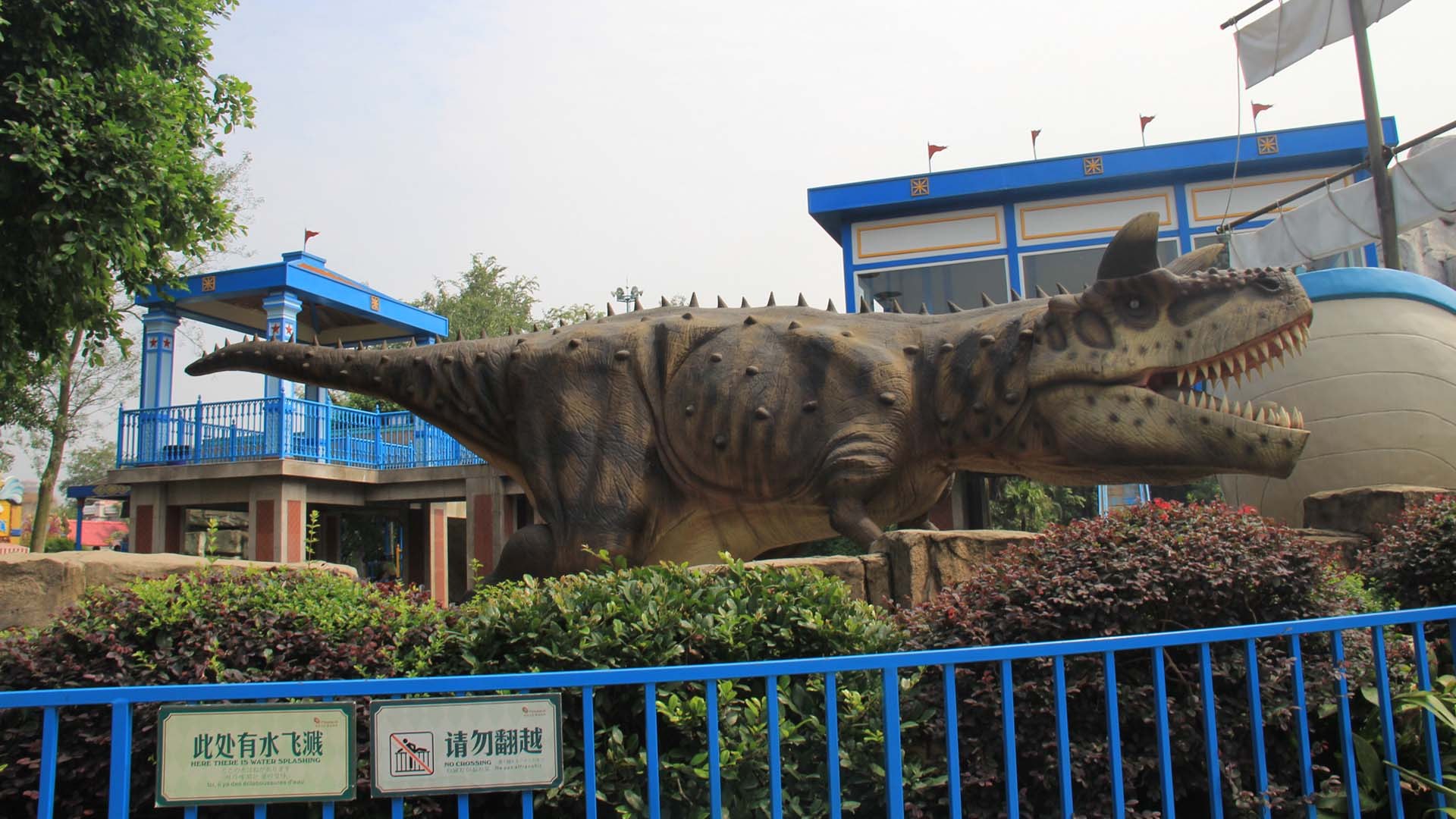

Museum grounds and educational displays, dinosaur trails, themed streets, mall atriums and public squares. A Carnotaurus is a good park animal because the horns give it a distinct read without making it hostile, and it works well in a planted area where the animal sits low against the landscape rather than on an open plinth.
What sizes can be built? Anything from 1 m to 30 m long and up to 15 m tall. The size is set by the site, the sight lines and the transport route, not by a fixed catalogue.
How is it triggered? Four ways: infrared or radar sensing, a pre-programmed sequence set before dispatch, handheld remote, or voice interaction. Most sites run the sensor as the default and keep the remote for staff.
What does it need on site? A 110 V or 220 V supply and a solid fixing point. The unit arrives in modules and bolts together — no on-site welding.
Can it run outdoors? Yes. The standard specification is an outdoor one, with anti-UV silicone skin, a water-resistant servo drive rated to IP65, and a hot-dip galvanised frame that tolerates salt spray.
How is it fixed? Four options: concrete foundation with pre-embedded anchor bolts, a weighted base that can be moved as one piece, expansion bolts on a hard indoor floor, or a sealed and buoyancy-rated base for water features.
How long does production take? Custom builds run on a lead time confirmed against the drawing. Send the requirement and the site plan, and the proposal comes back with the timing and the drawings marked up.
Materials. National-standard steel frame, first-tier servo motors, high-density foam core, composite silicone skin over elastic fibre mesh, hand-sprayed colour finish.
Related.the animatronic dinosaur range, mall installations, costumes and puppets.
The model ships in bolted modules on a reinforced timber crate, with frame sections, skin panels and hardware packed and labelled. Sections bolt together on site; no on-site welding is required.
Our technician joins the first run so the head movement, jaw travel, breathing and tail are set against the site, and the horn and skull finish are checked in place after transport.
The base is fixed to suit the surface — a concrete foundation with anchor bolts for permanent outdoor work, a weighted base where the animal needs to move, or expansion bolts on a hard indoor floor.
| Frame | Hot-dip galvanised or lightweight aluminium welded structure, module sections bolted for transport |
|---|---|
| Skin | Composite silicone over elastic fibre mesh, multi-layer gradient PU paint with UV topcoat |
| Movements | Jaw, blink, head nod, forelimb grip, breathing torso, tail sway, walking stance |
| Control | Industrial microcontroller · infrared / radar trigger · remote · pre-programmed sequence · voice interaction |
| Weather | Outdoor specification standard; servo drive rated IP65, −20 °C to +60 °C |
| Size | Custom — length 1–30 m, height 1–15 m, built to your drawings |
| Lead Time | 30–45 days after drawing approval |
| Warranty | 12 months with maintenance support |
Same factory and the same build standard. What changes is size, movement set and how the exhibit is meant to be used on site.
This ceratopsian is built around the skull: a deep beaked head with a raised bony crest above the brow, set on a heavy neck […]
View Product

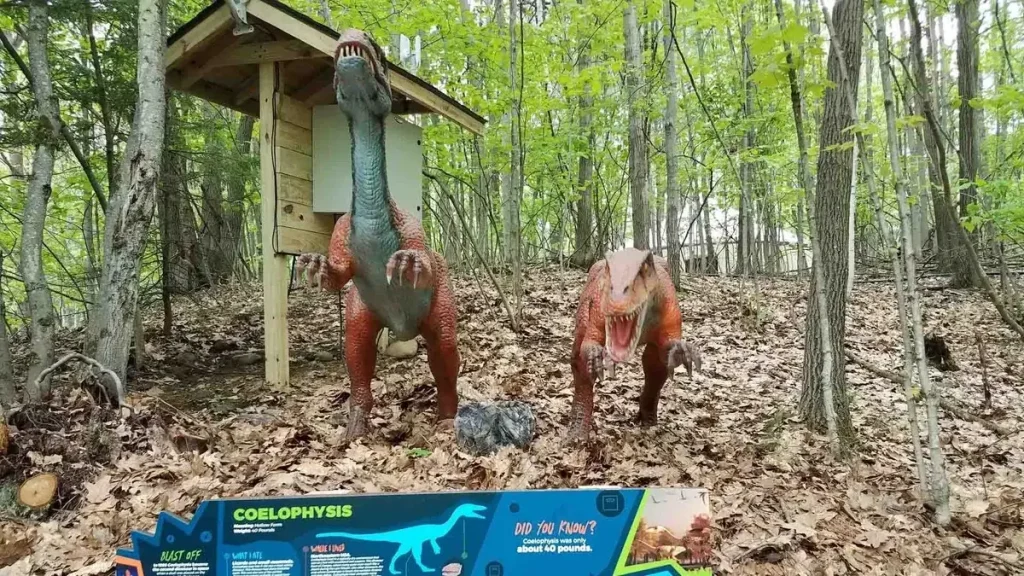

Coelophysis is one of the earliest known dinosaurs and one of the lightest — a slender, hollow-boned theropod about the size of a human. […]
View Product

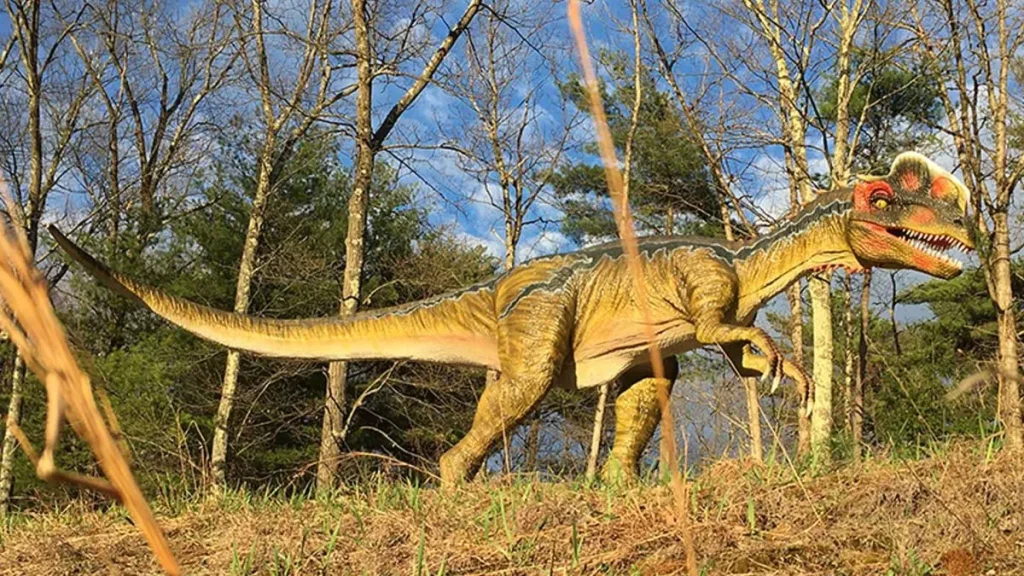

This is the exhibit build of the Dilophosaurus, not the ride. Same animal, same silhouette, different job: it stands on a trail or in […]
